“Through “Moorestown,” Intel is scaling the benefits of Intel Architecture while significantly reducing the power, cost and footprint to better address handheld market segments. As a result of our efforts, the Intel Atom processor is pushing the boundaries of higher performance at significantly lower power to show what’s possible as handheld devices become small, powerful mobile computers” --  Anand Chandrasekher, Intel senior vice president and general manager of the Ultra Mobility Group.

• SKUs – Intel is introducing the Intel Atom processor Z6xx series to support the high-performance requirements of the target market segments: up to 1.5 GHz for handhelds/smartphones and up to 1.9 GHz for tablets.
• Intel^® GMA 600 Graphics – Integrated power-optimized 2-D/3-D graphics with up to 400MHz  graphics core frequency, support for OpenGL* ES2.0, Open GL 2.1, and OpenVG* 1.1, and hardware-accelerated⁷ HD video⁷ decode (MPEG4 part 2, H.264, WMV & VC1) and encode (MPEG4 part2, H.264). Supports internal display up to 1366 x 768 LVDS or 1024 x 600 MIPI.
• Integrated Memory Controller and LPDDR1/DDR2 Support – An integrated 32-bit single channel memory controller offers fast memory read/write performance through efficient pre-fetching algorithms, low latency and high memory bandwidth. The Intel^® Atom™ Processor Z6xx family includes support for LPDDR1 200MHz (400MT/s) up to 1GB or faster, DDR2 400MHz (800MT/s) memory technology up to 2GB.
• Intel^® Burst Performance Technology (Intel^® BPT) – Enables the processor to dynamically burst to higher performance for very short intervals of time, making it possible to provide on-demand, higher performance in small device form factors without impacting thermal design power.
• Intel^® Hyper-Threading Technology (Intel® HT Technology)³ – Hyper-threading Technology provides performance and support for multithreaded applications, helping to deliver increased performance and system responsiveness in today's multitasking environments by enabling the processor to execute two instruction threads in parallel. Examples include fast Web page downloads, multi-tasking and multi-windowing capabilities.
• Intel^® Smart Idle Technology (Intel SIT) – Enables the CPU core and the rest of the SoC to switch off while the operating system remains in the "ON" state (S0). The technique takes full advantage of clock and distributed power gating across the 19 SoC power islands.

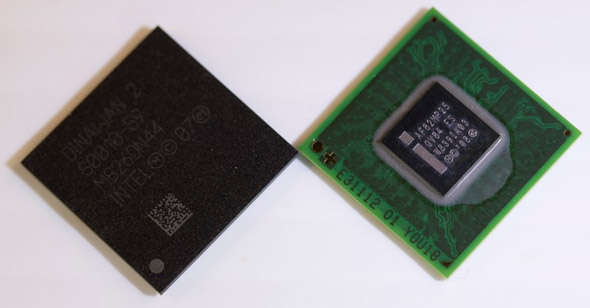

• Ultra Small Form Factor Package - New Flip Chip Molded Ball Grid Array (FCMBA3) package (13.8x13.8x1.1mm) which enables pocketable smartphone designs and tablet form factors.
• Green technology - Manufactured with lead-free and halogen-free component packages.^1,2

• Intel^® Smart Power Technology (Intel SPT) – Provides the infrastructure that enables the next-generation OS/software managed, usage model-based power management architecture. This fine-grained platform power management technique manages the idle and active power states across all aspects of the system and aggressively applies power and clock gating through the SoC’s power islands and system rails.
• Intel^® Smart & Secure Technology⁴ (Intel S&ST) – A complete hardware and software security architecture for smartphones, handhelds and tablets. It provides crypto acceleration, is compliant with industry standards (AES, DES, 3DES, RSA, ECC, SHA-1/2, DRM), supports 1,000 bits of OTP, and enables Secure Boot. These capabilities enable a highly smart and secure solution across hardware and software.
• Intel^® Smart Sound Technology⁵ (Intel SST) – Uses a high-quality (24-bit) audio DSP which enables voice processing and supports a wide range of audio CODECs (MP3, AAC-LC, HE-AAC v1 & v2, WMA9, PCM). This technology enables ultra-low power consumption, providing extended battery life for mobile applications.
• Universal Serial Bus (USB)* & USB On-The-Go (OTG) - Hi-speed USB provides fast performance with a design data rate of up to 480 megabits per second (Mbps). USB OTG provides a cost-effective solution for a handheld device to communicate with such CE devices as a camera, printer or portable hard disk drive. USB OTG devices can have both USB-host and peripheral controller functions on one chip, making it possible for the chip to act as a USB host or a USB peripheral.

• Highly Integrated Solution – The MSIC integrates power delivery, battery charging and a range of analog and digital components such as audio codecs, touch screen controller, sensors, LDOs, DC-DC and GPIOs. This integration results in minimizing the part count for the platform and enabling a lower power, lower cost solution.
• Aggressive Power Gating – The MSIC plays an integral role in delivering a low-power platform by enabling power gating through a series of voltage rails to the Intel Atom processor and PCH. By shutting down transistors when not in use, power leakage goes down and battery life goes up. The MSIC also enables faster transitions in and out of power states, allowing for more frequent and longer residency in ultra-low-power saving states.
• Multiple Sources – Intel has worked with industry leading MSIC suppliers including Freescale*, Maxim* and Renesas* to deliver a compatible solution for use by system manufacturers.

• Always Connected – The platform supports a multitude of ways to connect – Wi-Fi, 3G, and WiMAX – and in conjunction with the ultra-low-platform idle power makes it possible to enable Always Connected usage models.
• Range of Optimized Solutions – Intel has worked with a number of third parties to support a range of wireless solutions for the platform. For 3G connectivity, ST-Ericsson’s* M340* discrete solution provides data+voice connectivity while Ericsson’s* C3607w* module enables data connectivity solutions. Additionally, Intel has enabled Marvell* 8688* for Wi-Fi solutions and Infineon* Hammerhead 2* for GPS solutions.
• Advanced Technology – Intel has worked with ISVs such as SNR Labs* to support advanced connection management features including QOE based seamless handover from 3G to Wi-Fi and vice versa. In addition, Intel has worked with Rx Networks* to support advanced GPS solutions on the platform.

• Port of Choice – Consistent with Intel’s long-standing port of choice strategy, the new Intel Atom processor-based platform supports a range of software including Android*, Moblin* v2.1 and MeeGo*.
• Android* – As a founding member of the Open Handheld Alliance (OHA), Intel has worked with Google* over the past few years and is providing support for the Android platform at launch. The performance characteristics of the Intel Atom processor Z6xx Series are reflected across Android* implementations, making it a compelling platform for a range of handheld devices.
• Moblin 2.1/ MeeGo 1.0 – The Intel Atom platform has been optimized to deliver the best performance and Internet experience at dramatically low power levels with the Moblin 2.1 software platform. With the recent merger of Moblin and Nokia’s Maemo* platform, the new Intel Atom processor-based platform also supports the MeeGo software solution.
• Software Ecosystem Momentum – Intel is working with leading industry players to support a breadth of middleware and applications. Key middleware support includes runtimes such as Adobe* Flash, AIR*, and Microsoft* Silverlight*, media frameworks and players including Fluendo* GStreamer* and Real Networks* Helix*, Discretix* DRM including WM-DRM, OMA Video and Audio, Redbend* device management, SNRLabs* Connection Manager, and full telephony framework. Additionally, a number of ISVs are delivering optimized applications and rich user interfaces. These cover the breadth of usage models: entertainment (such as Scalado* for managing high- resolution photos, Aricent* video suite, Axel* Fuugo* Internet TV, World of Warcraft* via Crossover*); information (such as NDrive* 3-D navigation); communication (such as Vidyo* multi-point video conferencing, Skype* VoIP) and productivity.
